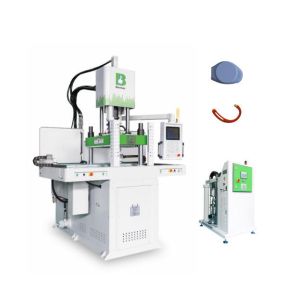

Liquid Silicone Rubber LSR Injection Molding Machine High Precision

Liquid Silicone Rubber Earbud Molding Machine High-Precision LSR Earphone Silicone Sleeve Production Equipment

Guangzhou S-guangyu Machinery Equipment Co., Ltd. Specialized in manufacturing equipment for liquid silicone rubber products. Established in 2010, the company boasts a core team with over 20 years of industry experience and has achieved annual sales growth exceeding 30%. Our scope encompasses: liquid silicone injection moulding machines, liquid silicone feeding systems, solid-to-liquid conversion equipment, automated part removal systems, and complete liquid silicone production suites. We provide comprehensive liquid silicone moulding solutions and automated production systems. Scale: The company employs 70 staff, comprising 43 production personnel, 12 sales representatives, 10 R&D & technical engineers, and 5 after-sales engineers.

Guangzhou S-guangyu Machinery Equipment Co., Ltd. is situated in Huangpu District, Guangzhou, China, serving as the company's product R&D centre and manufacturing base. Over the years, the Better brand has garnered significant market recognition and acclaim. S-guangyu continuously researches, develops, and innovates products and processes. It not only possesses numerous proprietary intellectual property projects but also maintains a consistent technological competitive edge within its field. The novel material processing and moulding equipment developed by S-guangyu remains at the forefront of industry technology to this day and is widely utilized by numerous large, well-known enterprises. Presently, S-guangyu not only supplies the market with a comprehensive range of metered mixing series products manufactured to exacting design, process, and quality standards but has also established a highly skilled and efficient technical service team.

S-guangyu will provide you with an integrated solution of machinery, mold and support services for manufacturing daily parts:

1. Independent double-cylinder injection system to ensure the injection stability. Different glue can be injected.

2. Independent direct pressure clamping unit,different mold thickness can be chose.

3. Mechanical positioning device to ensure its accurate positioning and protect the mold.

4. Independent system design, it is flexible and convenient to use. Single-mode production is also possible.

5. Wide range of technical options.

What is the LSR injection molding machine?

An LSR injection molding machine is a specialized piece of equipment used to produce parts from liquid silicone rubber (LSR) through a process called liquid injection molding (LIM). These machines are designed to handle the unique properties of LSR, which is a thermoset material that requires specific processing conditions to achieve proper curing.

Here's a more detailed explanation:

Key Features and Process:

Dedicated LSR Injection Unit:

Unlike traditional injection molding, LSR machines feature a specialized injection unit designed to handle the low viscosity of liquid silicone rubber.

Meter Mixing System:

LSR typically comes in two parts (A and B) that need to be precisely mixed in a specific ratio (usually 1:1). These machines have a meter mixing system (often hydraulic or pneumatic) to ensure accurate and consistent material delivery to a static mixer.

Static Mixer:

The two-part LSR mixture is fed into a static mixer, which combines the components to initiate the curing process.

Heated Mold:

The mixed LSR is injected into a heated mold cavity, where the heat triggers a chemical reaction that cures the material into a solid, flexible rubber component.

Precise Temperature Control:

Maintaining the correct temperature in the mold is crucial for proper curing, and LSR machines offer precise temperature control.

Fast Cycle Times:

Because LSR cures from the outside in, it can often be demolded before the entire part is fully cured, leading to faster cycle times compared to some thermoplastic molding processes, especially for thicker parts.

Advantages of LSR Injection Molding:

Complex Geometries:

The low viscosity of LSR allows it to fill intricate mold designs and thin-walled sections.

Lower Injection Pressures:

Compared to thermoplastics, LSR can be injected at lower pressures, reducing stress on the mold and machine.

High Precision and Repeatability:

LSR machines are designed for high precision and repeatability, making them suitable for producing parts with tight tolerances.

Wide Temperature Range:

LSR parts can withstand a wide range of temperatures, making them suitable for various applications.

Excellent Material Properties:

LSR offers good elongation, high tear and tensile strength, excellent flexibility, and good electrical insulating properties.

Common Applications:

LSR injection molding is used in a wide range of industries, including:

Medical: Devices like seals, gaskets, catheters, and breathing masks.

Automotive: Seals, gaskets, and other components.

Electronics: Keypads, connectors, and insulators.

Consumer Goods: Baby bottle nipples, kitchen utensils, and various household products.

In summary: LSR injection molding machines are specialized systems that leverage the unique properties of liquid silicone rubber to produce high-precision, durable parts for a wide range of applications.
