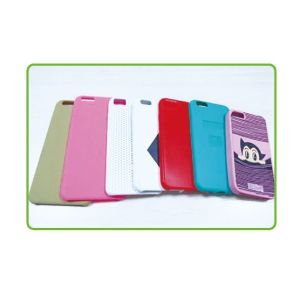

Integrated Silicone Mobile Phone Case Making Machine High Performance

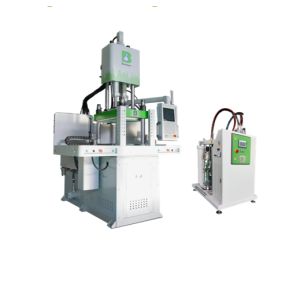

LSR injection machine:vertical sliding /vertical rotary /horizontal etc.
Injection unit:
1. Square hydraulic motor:its position accuracy is ≤0.1MM;
2. Non-return valve between the motor and tube;
3. Bidirectional axial :positioning to avoid the wiggle of the screw；its swing accuracy is ≤0.05MM;
4. Barrel :LSR using ;spline design;pneumatic sealant shut-off nozzle;
5. Injection cylinder:one-piece casting ,its diameter is 5~10mm bigger than normal ;
6. Oil circuit: specially design for LSR, its storage position accuracy is ≤0.05MM;
7. Oil pump : aluminum jacketed oil seal that installs easily and locate well;Oil pump with bidirectional buffering,which moves smoothly;
8. Dorsal bracket ring: protect the O-ring;
9. Air cylinder :internal installed pneumatic sealing needle nozzle；electronic measuring ruler(Gefran-Italy)
10. Optional-Rexroth full closed loop servo valve .(real-time monitoring pressure, speed, back pressure and automatic feedback correction.)
| The professional service from BETTER | |
| Pre -sales service | 1.Provide investment budget and plant planning; 2.Provide a whole set of solutions about machine and mold according to products that customers offered. |
| On-sales service | 1.Provide installation and new machine debugging services for users who purchase BETTER machine 2.Free training for your staff who can operate and maintain the machine independently in your factory. |
| After-sales service | 1.Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems; 2.After product upgrading, the upgrading work of previous users shall be given priority as required; |

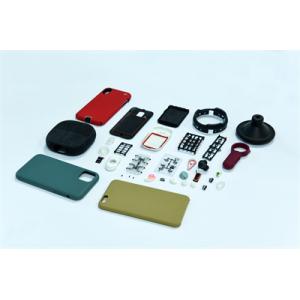

Almost every conceivable industry has discovered the opportunities that LSR and liquid injection molding processes offer for their products, including:
1.Seals, gaskets and thin membranes
2.Insulators and cushions
3.Valves and bladders
4.Respiratory masks
5.Syringes and IV components
6.Wearable health monitoring devices
7.Electronic components
8.Food and beverage products
